  • ZOOM LENS

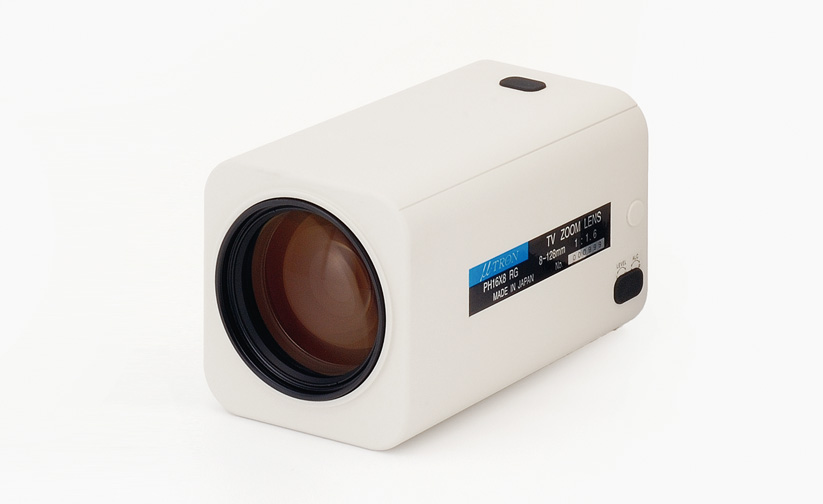

16x Motorized Zoom Lens for Mega Pixel

Suitable for the highway number plate recognition,
city surveillance, etc...

FEATURES

Optical performance is different from other standard lenses.
en_graph_07_01

SPECIFICATION

Model No. PH16X8RG
Maximum compatible sensor 1/2
Focal length f8〜128mm
F No. 1:1.6
Range of iris 1.6〜560
Mount C
Angle of view (1/2”) 44.7°X33.4°〜2.9°X2.2°
Angle of view (2/3”) 33.4°X25.4°〜2.2°X1.6°
Operation Zoom Remote
Focus Remote
Iris DC iris
M.O.D. 1.5m
Filter pitch M62  P=0.75
Weight 760g
Dimension

○Preset type with potentiometer is added “PZF” at the end of model No.
