Produktpalette für 365 nm, 375 nm, 385 nm und 395 nm
| Modellname | Wellenlänge (nm) | Stromverbrauch (W) | Eingangsspannung (V) | Ansicht von außen |
|---|---|---|---|---|
| MDBC-CH75◆-UV-□ | 365 385 395 405 |
8 | DC24V |  (n=1) |
| MDBC-CH150◆-UV-□ | 17 | (n=2) |
||
| MDBC-CH225◆-UV-□ | 25.5 | (n=3) |
||
| MDBC-CH300◆-UV-□ | 34 | (n=4) |
||
| MDBC-CH375◆-UV-□ | 42.5 | (n=5) |
||
| MDBC-CH450◆-UV-□ | 51 | (n=6) |
||
| MDBC-CH525◆-UV-□ | 59.5 | (n=7) |
||
| MDBC-CH600◆-UV-□ | 68 | (n=8) |
○◆ = Illumination type (L = Long type, S = Short type)
○□ = Wavelength: 365, 385, 395, 405.
○The optional UV-specific diffuser: MKBB-CH-UV series is available
| Modellname | Wellenlänge (nm) | Stromverbrauch (W) | Eingangsspannung (V) | Dimensions |
|---|---|---|---|---|

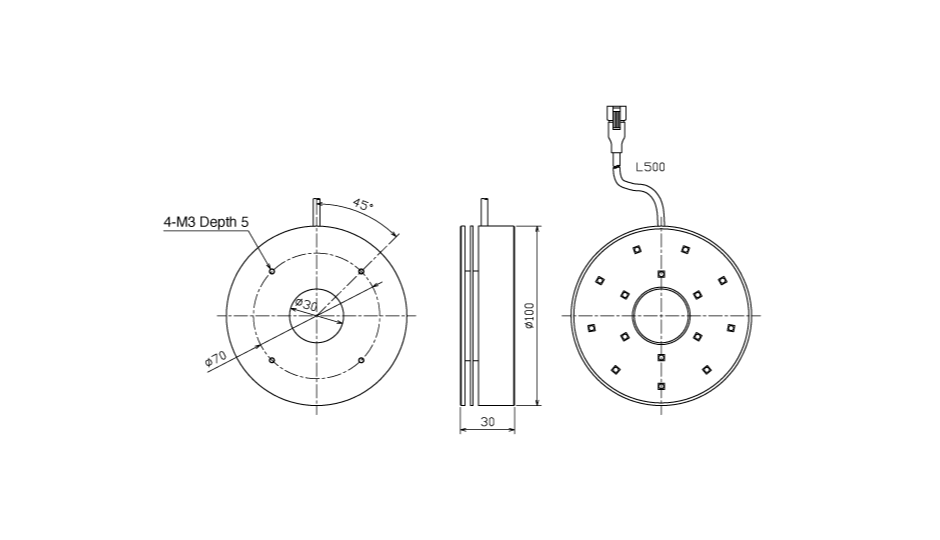

| MDHRC-65◆-UV-□ |
365,385 395,405 |
10.5 | DC24V |  |
| MDHRC-100◆-UV-□ | 21 |  |
○◆ = Illumination type (L = Long type, S = Short type)
○□ = Wavelength: 365, 385, 395, 405.
○The optional UV-specific diffuser: MKBB-CH-UV series is available
| Modellname | Wellenlänge (nm) | Stromverbrauch (W) | Eingangsspannung (V) | Dimensions |
|---|---|---|---|---|
| MHV-20AUV-□ |
365,375 385,395 405 |
– | 350mA |  |
| MHVE-21AUV-□ | – | 700mA |  |
○□ = Wavelength: 365、375、385、395、405.
○Connect to Resistor Box (MRBOX series)：Compatible with MLP series and MDGC series controllers
