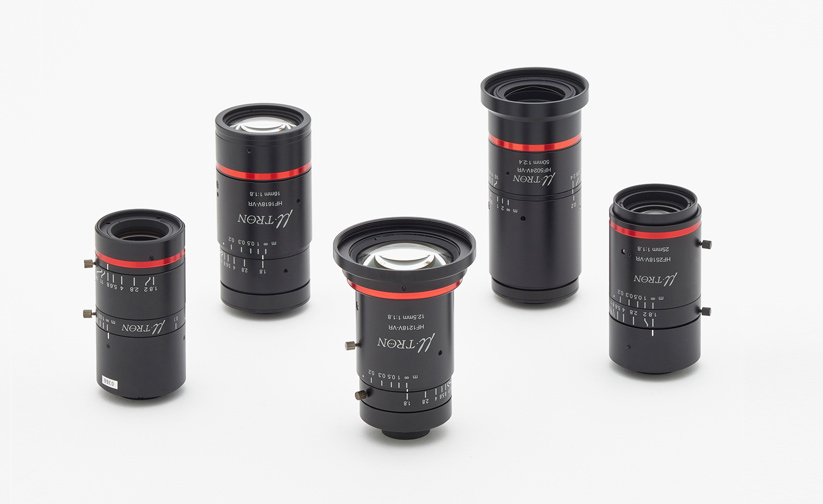

Fixed Focal Lens with Focus Shift Correction

Visible - SWIR
Focus shift correction in wide wavelength band from Visible to SWIR

Focus shift correction in wide wavelength band from Visible to SWIR
Clear images in visible light and transmitted images in SWIR can be captured without focus adjustment
Possible to capture differences and defects that cannot be seen in visible ray

Model	Brennweite	Magnification at MOD	Aufnahmebereich	Maximal kompatible Kamera	Wellenlänge
HF1218V-VR	12.5mm	0.11×	100mm〜∞	1.2″	400nm〜1700nm
HF1618V-VR	16mm	0.14×
HF2518V-VR	25mm	0.24×
HF3518V-VR	35mm	0.39×
HF5024V-VR	50mm	0.27×	200mm〜∞

Possible to image of the internal circuit board of USB memory

Visible（White）

SWIR（1100nm）
