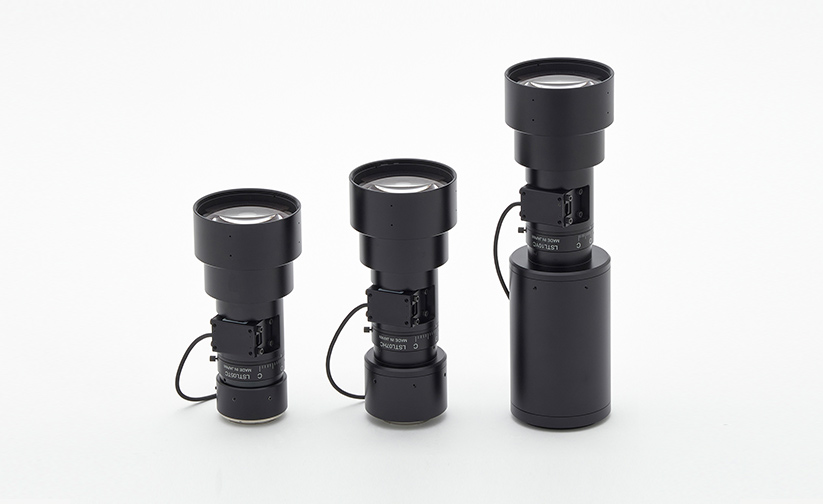

Adopts Flat Lighting coaxial illumination method
| Modellname |
Vergrößerung |
WD |
Bildkreis |
Anschluss |
|
|---|---|---|---|---|---|
|
Coaxial |
Non Coaxial |
||||
|
LSTL05TC-□ |
LSTL05T-□ |
0.5× |
150mm
|
φ35 |
F ／ B42 ／ V58 |
|
LSTL07HC-□ |
LSTL07H-□ |
0.7× |
φ44 |
F |
|
|
φ48 |
V58 |
||||
|
LSTL10YC-□ |
LSTL10Y-□ |
1.0× |
φ42 |
F |
|
|
φ67 |
N ／ M ／ D |
||||
○Die aufgeführten Werte sind Konstruktionswerte.
|
Anschlusstyp |
|||
|---|---|---|---|
|
Modellname |
Kompatible Kameras |
Montageform |
Flanschrückseite |
|
LSTL□□□-F |
F Mount Camera |
F Mount |
46.5mm |
|
LSTL□□□-B42 |
BASLER |
M42 P＝1 |
16mm |
|
LSTL□□□-V58 |
SVS-VISTEK |
M58 P＝0.75 |
11.48mm |
|
LSTL□□□-N |
NED |
M72 P＝0.75 |
31.8mm |
|
LSTL□□□-M |
TELEDYNE DALSA ／ TAKEX ／ VIEWORKS（151MP） |
M72 P＝0.75 |
19.55mm |
|
LSTL□□□-D |
TELEDYNE DALSA |
M72 P＝0.75 |
12mm |
○Die oben genannten Montierungen bieten einen Vergrößerungsbereich von ±0.05x um die Standardvergrößerung.
○Wir können auch andere als die oben aufgeführten Anschlüsse individuell anfertigen. Bitte kontaktieren Sie uns.
Standard Lighting
coaxial illumination
Flat Lighting
coaxial illumination
1000 gradations
digital controller
|
Modellname |
MLP-30M2 |
|
Input Voltage (V) |
DC24V±10％ |
|
Input current |
1.5A（MAX） |
|
Output voltage |
DC12V |
|
Capacity |
30W（2 channels total |
|
Channels |
2CH |
|
Dimming method |
Approximate 80kHz PWM control (1000 gradations) |
Digital pulse
dimmer power supply
|
Modellname |
MDGC-30M2-TP |
|
Input Voltage (V) |
AC100V～240V |
|
Capacity(W) |
30W |
|
Output voltage |
DC12V |
|
Channels |
2CH ※Possible to select up to 8CH |
|
Dimmer method |
Approx. 125kHz PWM control |
|
External control |
External ON/OFF, external dimmer |
|
Communication |
LAN communication |
Small multi-channel strobe power supply for LAN
|
Modellname |
MJS-30M2-TP |
|
Input Voltage (V) |
AC100V～240V |
|
Connection lighting capacity |
15W×2：Total 30W |
|
Output voltage |
DC12 to 36V （256 gradient variable output voltage） |
|
Channels |
2CH ※Possible to select up to 8CH |
|
PULSE with |
10μsec to 990μsec （10μs step）（duty：Within 5%） |
|
External dimming function |
LAN communication |
