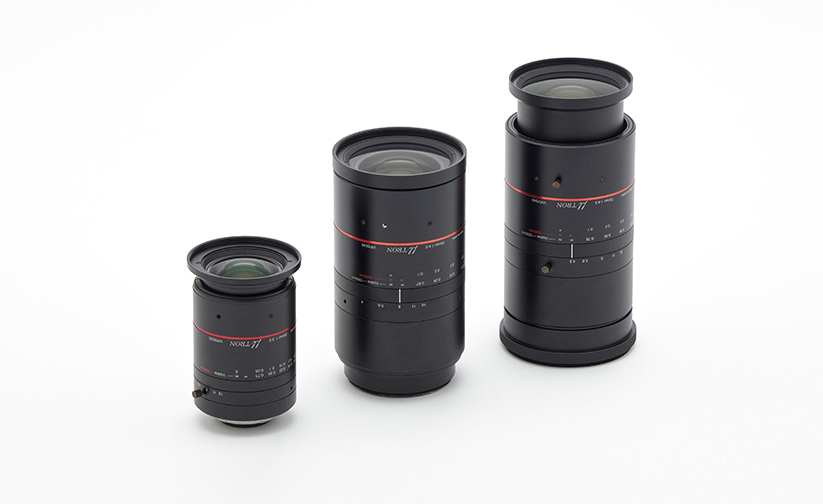

Adopts the latest optical technology to achieve clear color reproduction with color images
|
型号 |
焦距 |
倍率 at MOD |
工作距离 |
最大对应传感器尺寸 |
接口 |
波长 |
|---|---|---|---|---|---|---|
|
VIR3535-□ |
35mm |
0.3× |
100mm～∞ |
φ48 |
F／V58／U58 |
400nm～1200nm |
|
VIR5540-□ |
55mm |
0.5× |
φ67 |
N／M／D |
||
|
VIR7545-□ |
75mm |
0.5× |
200mm～∞ |
φ67 |
M／D |
|
|
φ83 |
DX／E |
○記載数値は設計値です。
|
接口 |
|||
|---|---|---|---|
|
型号 |
配合攝像機 |
接口呎吋 |
法蘭後焦(Flange Back) |
| VIR□□□□-F | F Mount Camera | F Mount | 46.5mm |
| VIR□□□□-V58 |
SVS-VISTEK |
M58 P＝0.75 |
11.48mm |
| VIR□□□□-U58 |
BAUMER |
M58 P＝0.75 |
12mm |
| VIR□□□□-N | NED |
M72 P＝0.75 |
31.8mm |
| VIR□□□□-M |
TELEDYNE DALSA ／ TAKEX ／ VIEWORKS（151MP） |
M72 P＝0.75 |
19.55mm |
| VIR□□□□-D |
TELEDYNE DALSA |
M72 P＝0.75 |
12mm |
| VIR□□□□-DX | TELEDYNE DALSA |
M90 P＝1 |
12mm |
| VIR□□□□-E | TELEDYNE e2V ／ VIEWORKS | M95 P＝1 | 9.4mm |
○±0.05x can be adjusted from the standard magnification by using the mount mentioned above.
○Customized mount is also available. Please contact us for further information.
