자외 조명

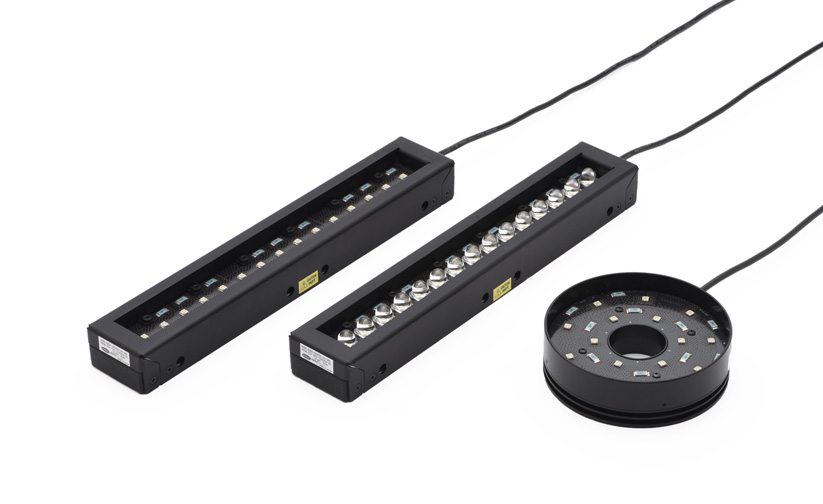

High-output UV Bar

형명	파장(nm)	소비전력（W）	입력전압（V）	외형도
MDBC-CH75◆-UV-□	365 385 395 405	8	DC24V	(n=1)
MDBC-CH150◆-UV-□		17		(n=2)
MDBC-CH225◆-UV-□		25.5		(n=3)
MDBC-CH300◆-UV-□		34		(n=4)
MDBC-CH375◆-UV-□		42.5		(n=5)
MDBC-CH450◆-UV-□		51		(n=6)
MDBC-CH525◆-UV-□		59.5		(n=7)
MDBC-CH600◆-UV-□		68		(n=8)

○◆ = Illumination type (L = Long type, S = Short type)
○□ = Wavelength: 365, 385, 395, 405.
○The optional UV-specific diffuser: MKBB-CH-UV series is available

High-output UV Ring

형명	파장(nm)	소비전력（W）	입력전압（V）	외형도
MDHRC-65◆-UV-□	365,385 395,405	10.5	DC24V
MDHRC-100◆-UV-□		21

○◆ = Illumination type (L = Long type, S = Short type)
○□ = Wavelength: 365, 385, 395, 405.
○The optional UV-specific diffuser: MKBB-CH-UV series is available

UV高輝度同軸スポット照明

형명	파장(nm)	소비전력（W）	입력전압（V）	외형도
MHV-20AUV-□	365,375 385,395 405	–	350mA
MHVE-21AUV-□		–	700mA

○□ = Wavelength: 365、375、385、395、405.
○Connect to Resistor Box (MRBOX series)：Compatible with MLP series and MDGC series controllers
