| 型名 | 発光色 | 消費電力（W） | 外形図 | |
|---|---|---|---|---|
| MDHM-32/32HRT | R | 1.5 |  |
|
| MDHM-32/32DWT | DW | 1.8 | ||
| MDHM-32/32□T | B | G | 1.8 | |
| MDHM-32/62HRT | R | 2.9 |  |
|
| MDHM-32/62DWT | DW | 3.6 | ||
| MDHM-32/62□T | B | G | 3.6 | |
| MDHM-32/92HRT | R | 4.4 |  |
|
| MDHM-32/92DWT | DW | 5.4 | ||
| MDHM-32/92□T | B | G | 5.4 | |
| MDHM-32/122HRT | R | 5.8 |  |
|
| MDHM-32/122DWT | DW | 7.2 | ||
| MDHM-32/122□T | B | G | 7.2 | |
| MDHM-62/62HRT | R | 5.8 |  |
|
| MDHM-62/62DWT | DW | 7.2 | ||
| MDHM-62/62□T | B | G | 7.2 | |
| MDHM-62/92HRT | R | 8.7 |  |
|
| MDHM-62/92DWT | DW | 10.8 | ||
| MDHM-62/92□T | B | G | 10.8 | |
| MDHM-62/122HRT | R | 11.6 |  |
|
| MDHM-62/122DWT | DW | 14.4 | ||
| MDHM-62/122□T | B | G | 14.4 | |
| MDHM-92/92HRT | R | 13 |  |
|
| MDHM-92/92DWT | DW | 16.2 |  |
|
| MDHM-92/92□T | B | G | 16.2 | |
| MDHM-92/122HRT | R | 17.3 |  |
|
| MDHM-92/122DWT | DW | 21.6 | |
|
| MDHM-92/122□T | B | G | 21.6 | |

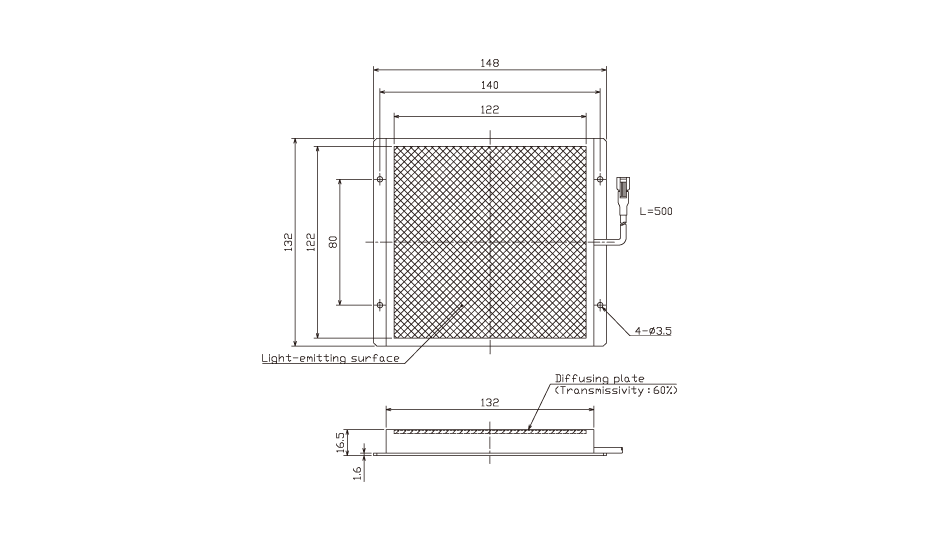

| MDHM-122/122HRT | R | 23.1 |  |
|
| MDHM-122/122DWT | DW | 28.8 |  |
|
| MDHM-122/122□T | B | G | 28.8 | |
○□には B= 青、G= 緑が入ります。
○入力電圧は DC12V ですが、DC24V 製品も製作可能です。
○DC24V 型式は、末尾に HV がつきます。
