ILLUMINATION
LIGHTING
〔 MSL80W 〕
For BTL Series Ultra-Bright LED Spot Light
NEW
LIGHTING

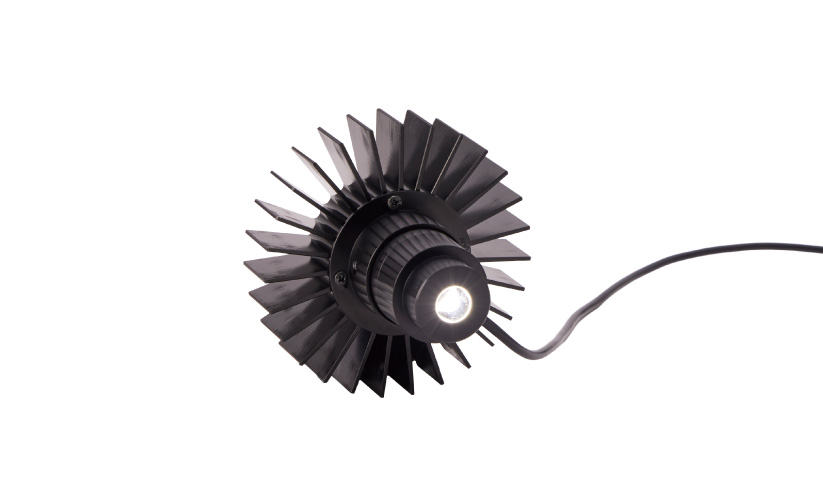

MSL80W
For BTL Series
Ultra-Bright LED Spot Light
Lighting designed specifically for BTL Series
Ultra-Bright LED Spot Light for BTL Series
Large LED beam diameter for uniform illumination across the entire field of view
Dedicated lighting design maximizes the performance of the BTL Series
Model
Light Color
Input Voltage
Dimensions
MSL80W
W
700mA
Compatible Controller
Compatible Lens Lineup
