• LIGHTING
  • UV series

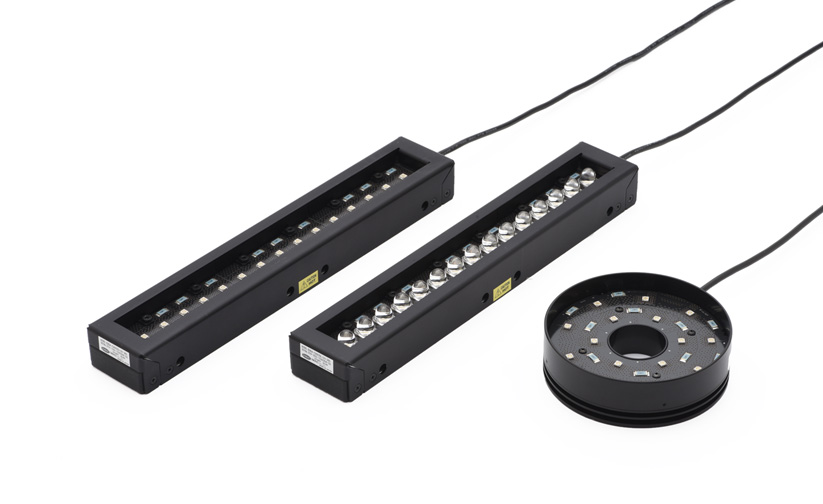

Ultraviolet lighting

FEATURES



SPECIFICATION

Model Color Power Consumption (W) Input Voltage (V) Wavelength (nm) Dimensions

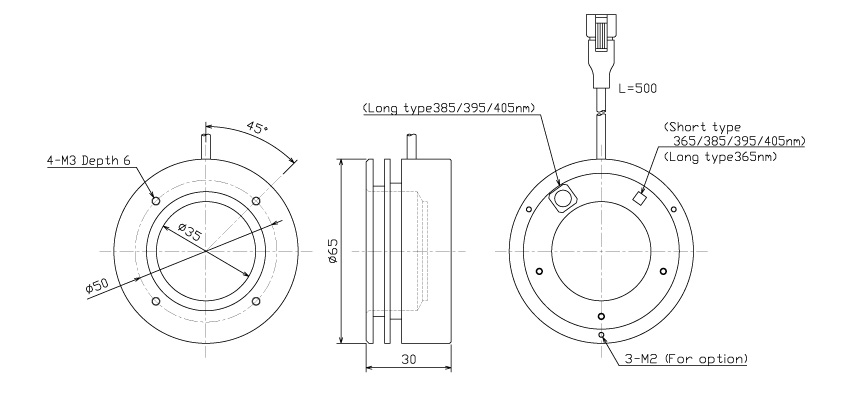

MDHR-60L-UV-(X2) UV 8 24 365
(375)
385
(395)
(405)
en_IDHR-60L-UV
MDHR-60S-UV-(X2) UV en_IDHR-60S-UV

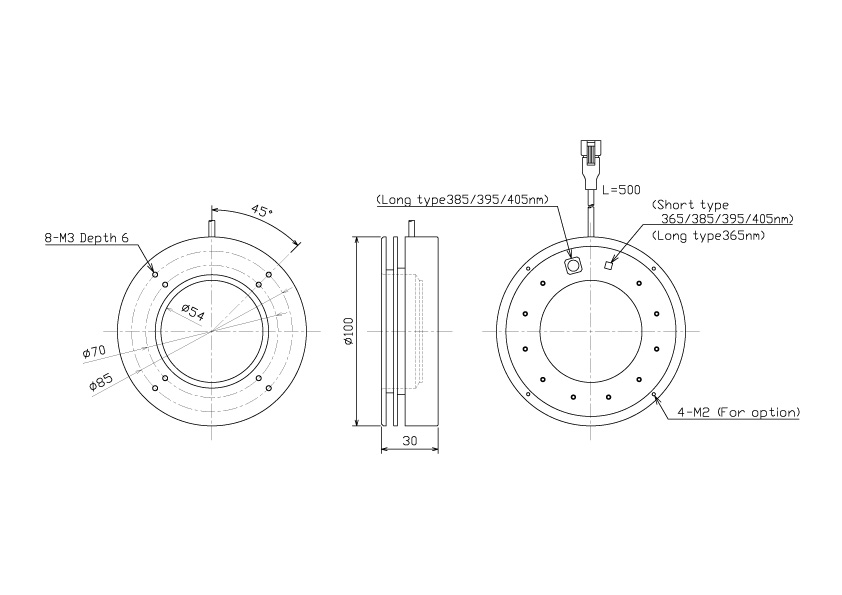

MDHR-100L-UV-(X2) UV 15.4 en_IDHR-100L-UV
MDHR-100S-UV-(X2) UV en_IDHR-100S-UV

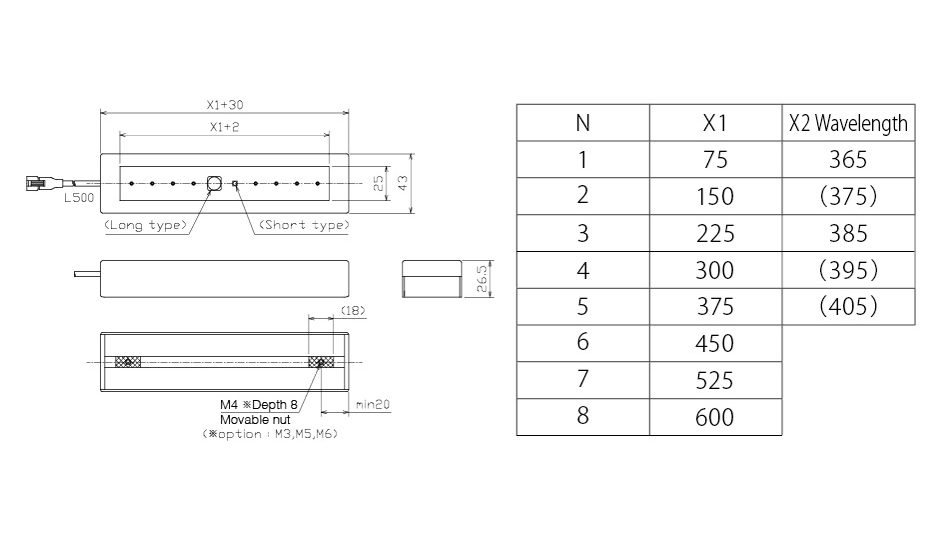

MDBA-CH(X1)L-UV-(X2) UV 8 x N
MDBA-CH(X1)S-UV–(X2) UV

● S = wide angle light distribution type, L = narrow-angle light distribution type, after number of the model number.
● The standard diffusion plate included is 90%. 80% or 60% can be attached as options.
● Can also attach a polarization plate.
● The meaning of X1 and X2, please refer to Dimension.
* SAG is the maximum voltage setting for a SAG power supply. See details here.



Model Color Power Consumption (W) Input Voltage (V) SAG* Wavelength (nm) Dimensions
MDR-50/28UV-405 UV 3.6 12 A7 405 sMDR-50_28cmn

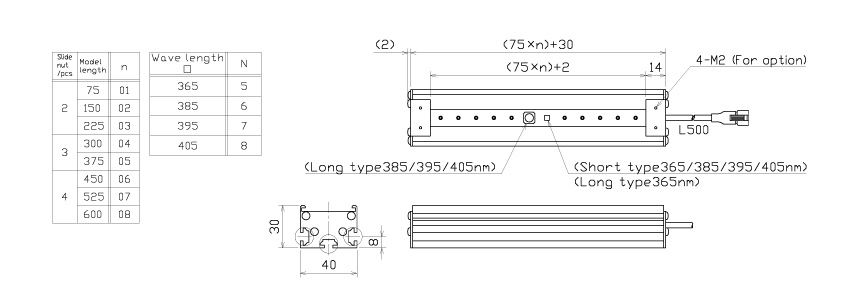

MDR-LA74/48UV-405 UV 7.2 A9 sMDR-LA74_48cmn
MDBA-C50/15UV-405 UV 2.9 A7 sMDBA-C50

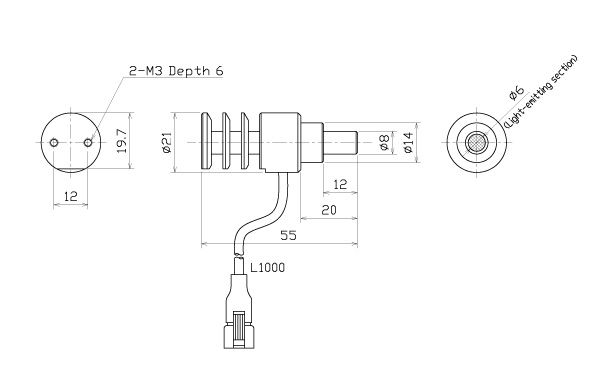

MHV-20UV-400 UV 400 en_IHV-20cmn

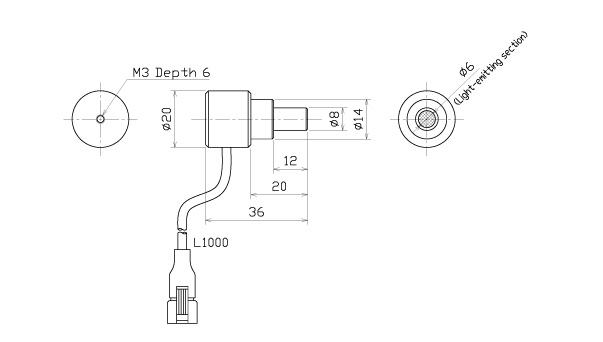

MHVB-22UV-365 UV 365 en_IHVB-22cmn
MFV-C40UV-405 UV 4.1 A7 405 IFV-C40cmn

● Ask us about other shapes.
● Input voltage is DC12V, but we can also make DC24V products.
● S = wide angle light distribution type, L = narrow-angle light distribution type, after number of the model number.
● The standard diffusion plate included is 90%. 80% or 60% can be attached as options.
● Can also attach a polarization plate.
* SAG is the maximum voltage setting for a SAG power supply. See details here.
