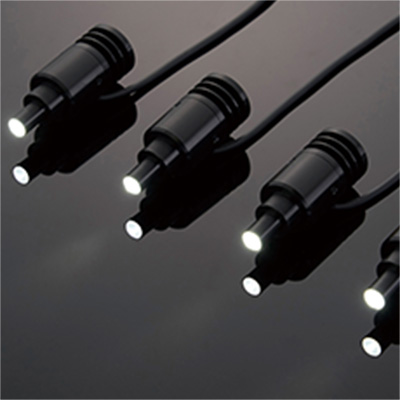

  • MSL Series

LED coaxial spotlight for
SWIR and Visible

Ultra-high brightness

FEATURES

SPECIFICATION

Ultra-high brightness for SWIR Coaxial spotlight

Model Wave length Input Current Dimensions
MSL22-1050SWH 1050nm 600mA
MSL22-1100SW 1100nm 800mA
MSL22-1450SW 1450nm
MSL22-1550SW 1550nm
Controller
MPP48W-C2(PWM Controller)+MRB-1 , MRB-3(Resistance Box)

Ultra-high brightness coaxial spotlight

Model Color Input Current Dimensions
MSL22W White 700mA
MSL22R Red
MSL22G Green
MSL22B Blue
Controller
MPP48W-C2(PWM Controller)+MRB-1(Resistance Box)

Compact size Coaxial spotlight

Model Color Input Current Dimensions
MSL14W White 250mA
MSL14R Red
MSL14G Green
MSL14B Blue
Controller
MPP48W-C2(PWM Controller)+MRB-2(Resistance Box)

Controller

Model MPP48W-C2
Light-emitting method Steady Light-emitting
Power drive system Constant voltage method
Input Voltage DC15V±10% Maximum approx.4A
Overcurrent protection function 2.5A/Per 1CH
Over 4A/Total 2CH→ Stop
Current Control method Voltage 12V, 30W/Per 1CH
Total 2CH → Less than 48W
Output Control method approx.118KHz PWM
Gradation 8000 Gradations
Channel 2CH
AC adaptor AC-AD1
Resistance box For MSL22 MRB-1
For MSL14 MRB-2
For MSL22-1050SWH MRB-3
Option
Cable 1m MCB-1
2m MCB-2
3m MCB-3
4m MCB-4
5m MCB-5
7m MCB-7
10m MCB-10
