HS-SW
  • FIXED FOCAL LENS
  • HS-V-SW Series

SWIR Fixed Focal Lens for 1”-1.1”

Possible to capture differences and defects that cannot be seen in visible ray

FEATURES

SPECIFICATION

Model Number Focal Length ∞F No.

Range of WD

TV distortion

Angle of view (H×V)

Filter pitch

Maximum Compatible Sensor

Mount

Dimension
HS0619V-SW 6mm 1.9

100mm 〜 ∞

0.14%

94.1°×77.5°

1”

C

HS0818V-SW 8mm 1.8

100mm 〜 ∞

-0.52%

77°×61°

M58 P=0.75

1”

C
HS1214V-SW 12.5mm 1.4 300mm 〜 ∞ -1.06%

54.2°×41.5°

M40.5 P=0.5 1”  C
HS1614V-SW 16mm 1.4 300mm 〜 ∞

-0.97%

43.6°x 33.1° M40.5 P=0.5 1”  C
HS2514V-SW 25mm 1.4 300mm 〜 ∞

-0.01%

28.1°x 21.3°

M40.5 P=0.5 1” C

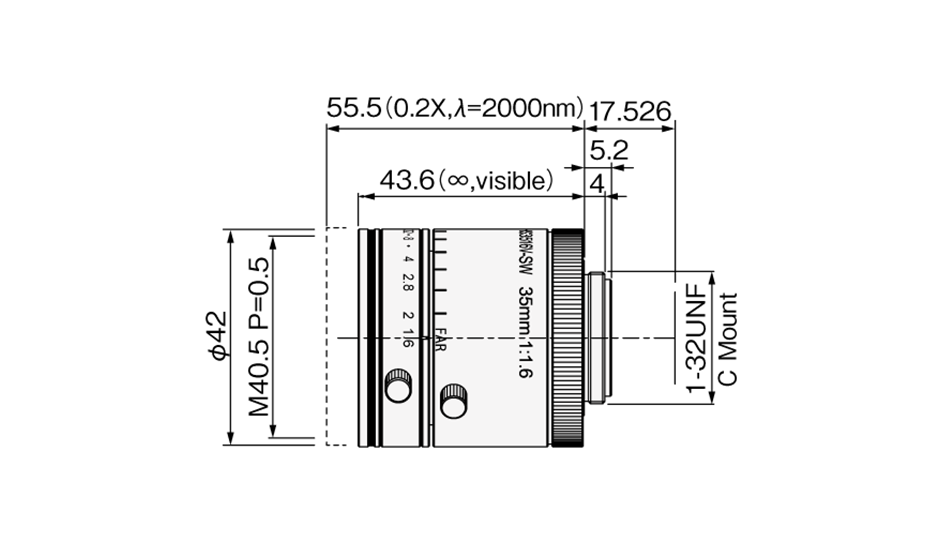

HS3516V-SW  35mm 1.6 200mm 〜 ∞ 0.09% 21.5°x 16.3° M40.5 P=0.5 1.1” C
 HS5016V-SW  50mm 1.6  300mm 〜 ∞ 0.10% 15.8°x 11.9° M40.5 P=0.5 1.1” C
HS7520V-SW  75mm 2.0 440mm 〜 ∞ 0.05% 10.8°x 8.1° M40.5 P=0.5 1.1” C
HS10028V-SW 100mm  2.8 620mm 〜 ∞ 0.09% 8.2°x 6.1° M46.5 P=0.75 1.1” C

○Indicated specifications are design values. ○TV distortion indicates a value for minimum working distance. ○Angle of view indicates a value for maximum compatible sensor.
