  • LSTL-H Series

High Resolution Telecentric Lens for
φ 44mm Sensor

The highest NA in the optical industry



Model Magnification WD

Depth of field

F No. Resolution Optical Distortion Maximum
Compatible sensor

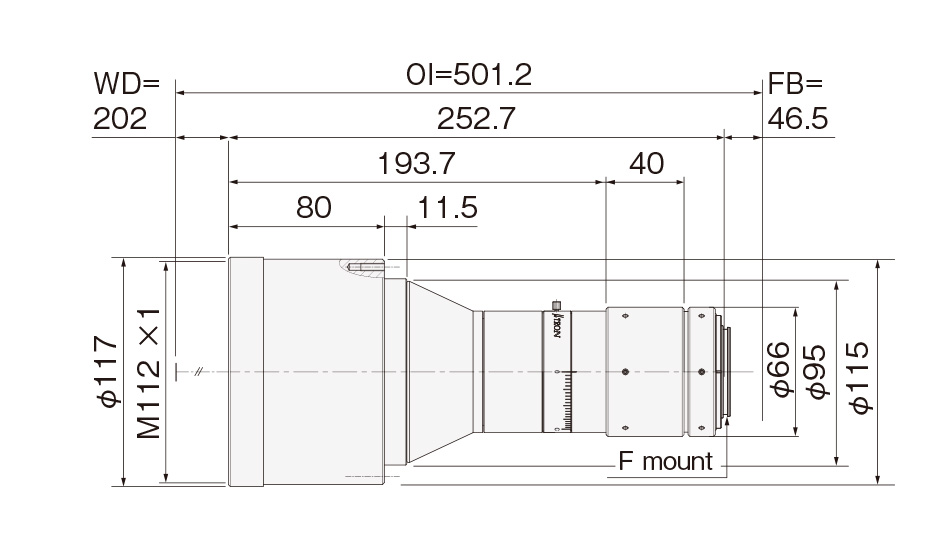

Mount Dimension
LSTL10H-F 1.0x 113mm 0.31mm 6.4 4.3μ 0.01% φ44mm F en_10_01
LSTL15H-F 1.5x 109mm 0.17mm 7.8 3.5μ 0.02% φ44mm F en_10_02
LSTL20H-F 2.0x 109mm 0.12mm 8.7 2.9μ -0.02% φ44mm F en_10_03

○Indicated specifications are design values. ○Resolution indicates the theoretical resolution at wavelength of 550nm.

○Depth of field is calculated assuming F No.(∞) 5.6 and resolution of 14μ camera.


Model No. for Different Mount

Model Compatible Camera Screw Pitch

Back Focal Distance

LSTL□□H-V58 SVS: SVCam-HR M58 (P = 0.75) 11.48mm
LSTL□□H-B42 Basler M42 (P = 1) 16mm
LSTL□□H-B42/2 Basler M42 (P = 0.75) 16mm
LSTL□□H-V42 SVS M42 (P = 1) 11.48mm
LSTL□□H-S42 Sentech M42 (P = 1) 10mm
LSTL□□H-D42 Dalsa: Spyder 3 M42 (P = 1) 6.56mm

○Customized mount is also available. Please contact us for further information.
