• LINE SENSOR LENS
  • SP Series

Super High Resolution Lens for
16K x 3.5μm and 8K x 7μm Line Sensor Camera

Suitable for high speed and
high-end applications

FEATURES

SPECIFICATION

Model Magnification F No. WD OI Maximum
Compatible sensor
Dimension
SP05 0.5x 4.3 276mm 463mm φ67mm en_05_01

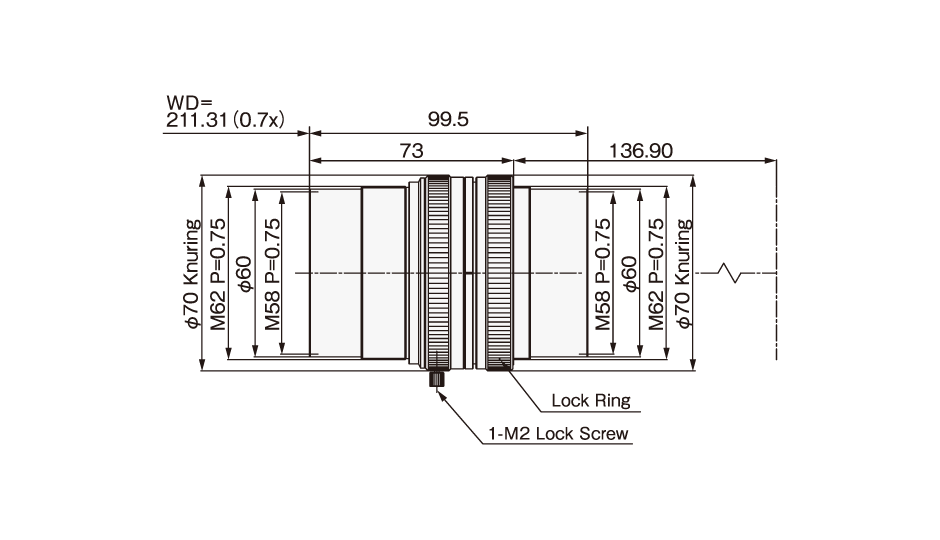

SP07 0.7x 5 211mm 421mm φ67mm en_05_02
SP10 1.0x 5.8 165mm 407mm φ67mm en_05_03
SP14 1.4x 6.8 112mm 419mm φ86mm en_05_04
SP20 2.0x 8.6 90mm 463mm φ100mm en_05_05
Dimension of SP07 + H Mount (M72x0.75 FB6.56mm) 444

○Example of camera mount. ○Indicated specifications are design values.
