• FIXED FOCAL LENS
  • HF Series

Fixed Focal Lens for 5-12 Mega Pixel

Line up, f5, 8, 12, 16, 25, 35, 50, and 75mm

FEATURES

SPECIFICATION

Model No. Focal length F No. M.O.D. Mount

Maximum compatible Sensor

Dimension
HF0528J-2 f 5mm F2.8 0.05m

C

2/3”
HF0818J-2 f 8mm F1.8 0.1m

C

2/3”
HF1214J-2 f 12mm F1.4 0.1m

C

2/3”
HF1218V f 12mm F1.8 0.1m

C

1.1”
HF1618V-2 f 16mm F1.8 0.03m

C

1.1”
HF2514V-2 f 25mm F1.4 0.08m

C

1.1”

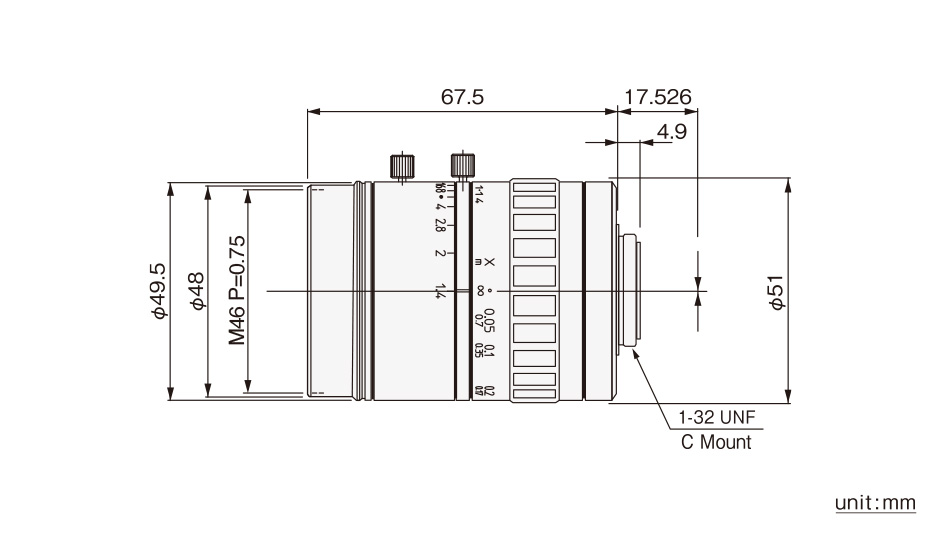

HF3514V-2 f 35mm F1.4 0.11m

C

1.1”
HF5018V-2 f 50mm F1.8 0.19m

C

1.2”
HF7518V-2 f 75mm F1.8 0.29m

C

1.2”
