  • XLS Series

Line Scan Lens for Large Image Circle, φ90mm

Compatible with large image circle, up to φ90mm sensor



Model Magnification ∞FNO F No. WD OI Maximum
Compatible sensor
XLS03 0.3x 4.7 6.0 477mm 666mm φ90mm en_07_01
XLS05 0.5x 4.7 7.0 324mm 540mm φ90mm en_07_02
XLS075 0.75x 4.7 8.1 246mm 491mm φ90mm en_07_03
XLS10 1.0x 4.7 9.0 197mm 465mm φ90mm en_07_04
XLS14 1.4x 4.7 11.4 170mm 494mm φ90mm en_07_05

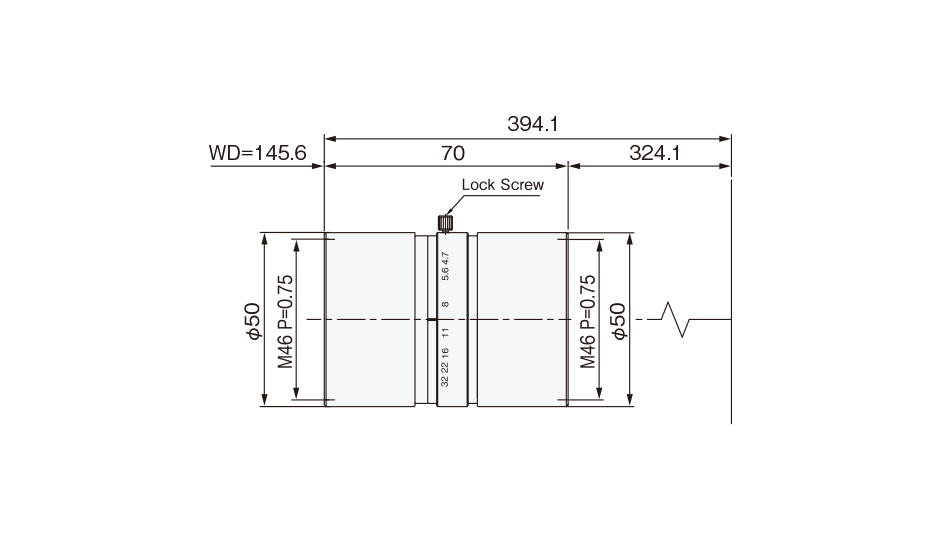

XLS20 2.0x 4.7 14.5 146mm 540mm φ90mm en_07_06

○Indicated specifications are design values.


Example : Model No . of Mount
Model Compatible Camera Screw Pitch Back Focal Distance Dimension
XLS05-F F Mount Camera F Mount 46.5mm en_07_07
XLS05-Q NED : 3 Line Camera NUCLi7300 M84.5(P=0.5) 41mm en_07_08
XLS05-N NED : CLISBee 8k M72(P=0.75) 31.8mm en_07_09
XLS05-M DALSA : Piranha28k / TAKEX : TL-16000CL M72(P=0.75) 19.55mm en_07_10
XLS05-D DALSA : Piranha4 8k Piranha HS 3 16k M72(P=0.75) 12mm en_07_11
XLS05-H DALSA : Piranha 3 12k Piranha HS 8k 12k Piranha ES 8k M72(P= 0.75) 6.56mm en_07_12
XLS05-E e2V: ELIIXA + 16K Pixels M95( P=1) 9.4mm en_07_13
XLS□□□-V58 SVS: SVCam-HR  M58(P=0.75) 11.48mm
XLS□□□-V42 SVS M42(P=1) 11.48mm
XLS□□□-B42 Basler M42(P=1) 16mm
XLS□□□–B42/2 Basler  M42(P=0.75) 16mm

○±0.05x can be adjusted from the standard magnification by using the mount mentioned above.

○Customized mount is also available. Please contact us for further information.
