• LINE SENSOR LENS
  • FV-W Series

Wide Field of View Lens for Area and Line Sensor Camera

Design for Machine Vision application

FEATURES

SPECIFICATION

Model Focal length ∞ F No. Range of WD Magnification at MOD Optical distortion Maximum Compatible sensor Mount Dimension

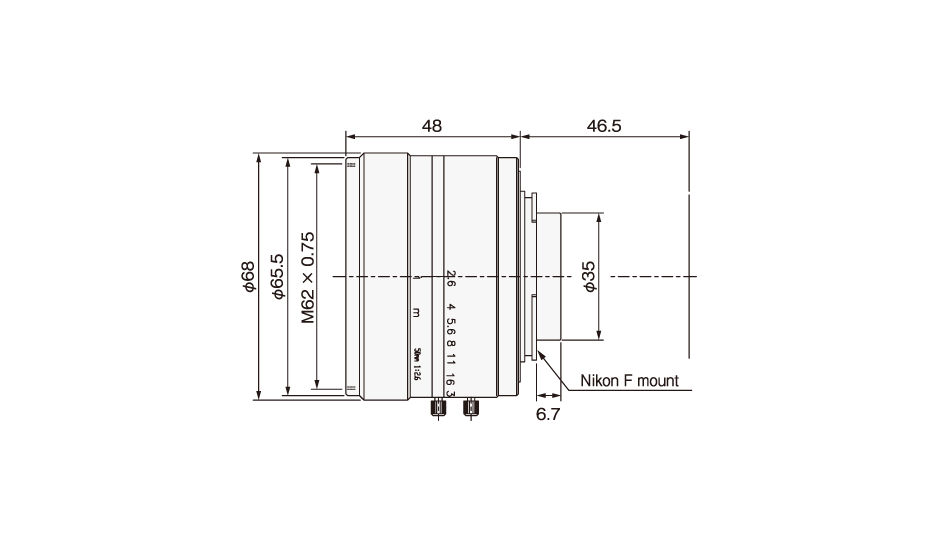

FV5026W-F 50mm 2.6 0.32m〜∞ 0.18x 0.23% φ45mm F en_17_01
FV8528W-□ 85mm 2.8 0.46m〜∞ 0.2x 0.04% φ67mm F or M72 en_17_02

○Indicated specifications are design value.

○ □ = Mount: F = Nikon F Mount, M = Dalsa P2 (FB19.55mm), H = Dalsa P2-HS and P3 (FB6.56mm), N = NED ClisBee (FB31.8mm)
