HF-V VV
  • NEW
  • FIXED FOCAL LENS
  • HF-V DN / VV Series

8 Mega Pixel Visible ~ NIR Chromatic aberration corrected lens

4K resolution

FEATURES



SPECIFICATION

Model Focal length ∞F No. Range of WD Angle of view (HxV) Filter pitch

Maximum

compatible

sensor

Dimension
HF1216V DN 12mm 1.6 1.8m – ∞ 56.1°x 46.05° M43 P=0.75 1″
HF1616V DN 16mm 1.6 0.8m – ∞ 43.6°x 35.3° M43 P=0.75 1″
HF2516V DN 25mm 1.6 1.0m – ∞ 28.2°× 21.2° M43 P=0.75 1″ HF2516V_DN
 HF3516V DN 35mm 1.6 1.5m – ∞ 20.8°× 15.6° M43 P=0.75 1″ HF3516V_DN
 HF5018V DN 50mm 1.8 1.5m – ∞ 15.0°× 11.2° M43 P=0.75 1″ HF5018V_DN
HF7520V DN 75mm 2.0 1.5m – ∞ 10.0°× 7.5 ° M46 P=0.75 1″

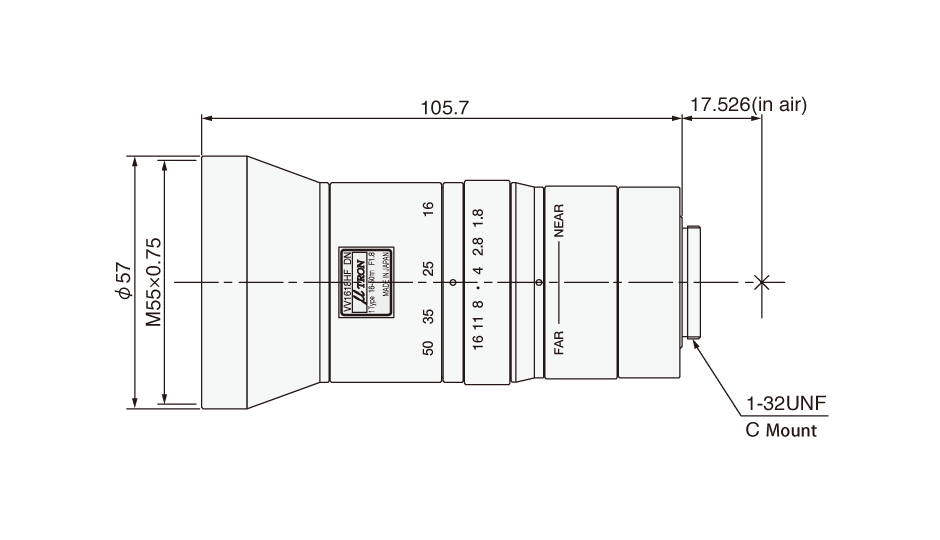

VV1618HF DN 16〜50mm 1.8 2m – ∞ Wide:44.4°x33.4°
Tele:14.9°x11.3°
M55 P=0.75 1″

*Indicated specifications are design values.
