• TELECENTRIC LENS
  • LSTL Series

Low Magnification Telecentric Lens for φ30mm

Suitable for F mount high resolution camera

FEATURES

SPECIFICATION

Model  Magnification

F No.

Object side NA

WD

OI

Depth of field

Resolution

TV distortion

Image Circle

Mount Dimension

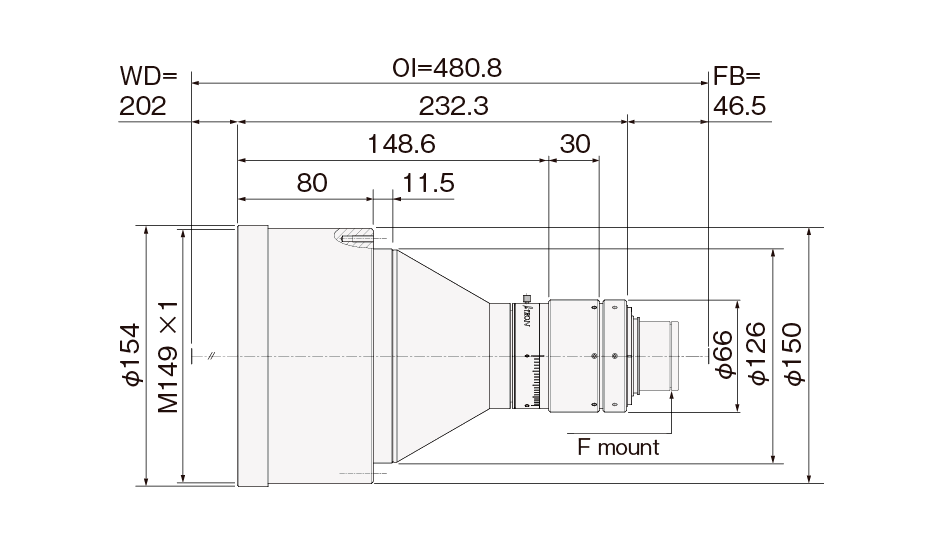

LSTL022T-F 0.22x

6.0

0.018

202mm

480.8mm

9.9mm

18.3μ

0.02%

φ29mm

 F/M42
LSTL0275T-F 0.275x

6.0

0.023

202mm

449.7mm

6.4mm

14.7μ

-0.01%

φ29 mm


LSTL0366T-F 0.366x

6.0

0.031

202mm

449.6mm

3.6mm

11μ

0.00%

φ29 mm


LSTL03TW-F 0.3x

9.7

0.015

148.1mm

419.2mm

8.6mm

22.4μ

0.01%

φ28.2mm

 F
LSTL055TW-F 0.55x

5.17

0.053

161.0mm

399.6mm

1.37mm

6.33μ

0.021%

φ30.8 mm

LSTL078TW-F 0.78x

9.8

0.04

125.3mm

352.8mm

1.3mm

8.4μ

0.00%

φ28.2mm

○Indicated specifications are design values.  ○Resolution indicates a theoretical resolution at a wavelength of 550nm. ○Depth of field is calculated assuming permissible circle of confusion is 40μm.

  • NEW
  • FG-L Series

Flange adapter for large format low magnification telecentric lens

Suitable for MGTL series, LSTL series

FEATURES

SPECIFICATION

Model Lenses
FG01L LSTL022T-F
FG02L LSTL0275T-F
FG04L LSTL0366T-F

○Accessories: Screw  4 x 16 (8 pieces)
