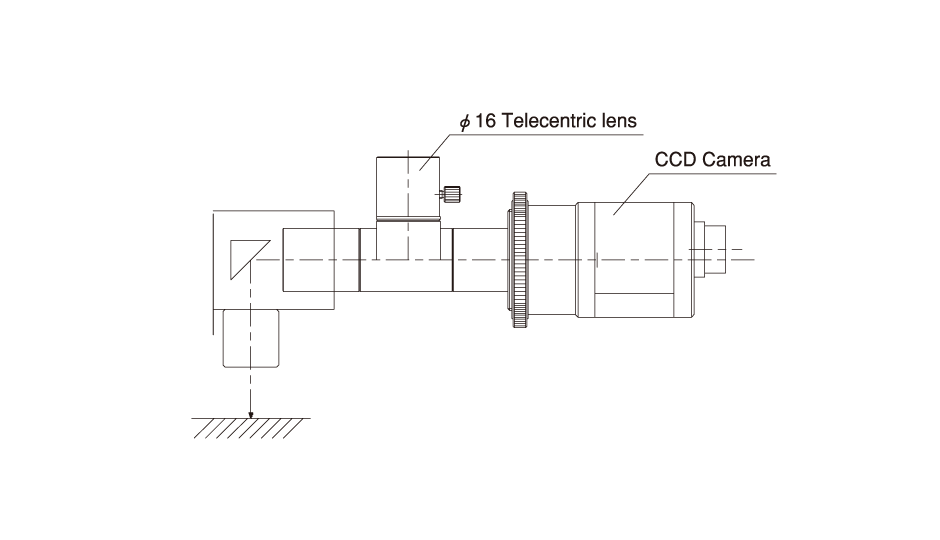

| 90° slide-looking rectangular mirror type | ||
|---|---|---|
| Optical axis can be bent 90°degrees. Effective when there is no space above the object. Monitored image is a mirror image. | ||
| Model | Compatible model | Dimension |
| TL-PM16-1 | φ16 Telecentric Series |  |
| TL-PM22-1 | WD220 Telecentric φ22 | |
| TL-PM39-1 | WD220 Telecentric φ39 | |
| 90° slide-looking pentaprism type | ||
|---|---|---|
| Optical axis can be bent 90°degrees. Effective when there is no space above the object. Monitored image is an electing image. | ||
| Model | Compatible model | Dimension |
| TL-PP16-1 | φ16 Telecentric Series |  |
| TL-PP22-1 | WD220 Telecentric φ22 | |
| TL-PP39-1 | WD220 Telecentric φ39 | |
| Optical axis pitch conversion type | ||
|---|---|---|
| Narrow pitch marks between two points can be recognized. | ||
| Model | Compatible model | Dimension |
| TL-PT16-1 | φ16 Telecentric（Pitch 8mm/One side 4mm） |  |
| TL-PT16-2 | φ16 Telecentric（Pitch 10mm/One side 5mm） | |
| TL-PT16-3 | φ16 Telecentric（Pitch 20mm/One side 10mm） | |
| Optical axis pitch 90°conversion type | ||
|---|---|---|
| Narrow pitch marks between two points can be recognized. Effective when there is no space above the object. | ||
| Model | Compatible model | Dimension |
| TL-PTV16-1 | φ16 Telecentric（Pitch 8mm/One side 4mm） |  |
| TL-PTV16-2 | φ16 Telecentric（Pitch 10mm/One side 5mm） | |
| TL-PTV16-3 | φ16 Telecentric（Pitch 20mm/One side 10mm） | |
