- NEW
- TELECENTRIC LENS

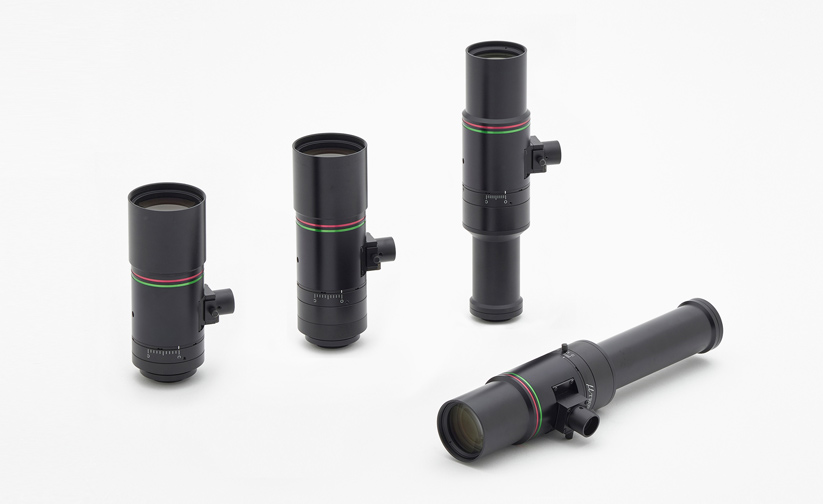

- FTV-VR Series
Visible ~ SWIR Telecentric Lens with Focus Shift Correction
- Focus shift correction in wide wavelength band from Visible to SWIR
- Clear images in visible light and transmitted images in SWIR can be captured without focus adjustment
- Possible to capture differences and defects that cannot be seen in visible ray
| Model |
Magnification |
WD |
Image Circle |
Wavelength |
| Coaxial |
Non Coaxial |
| FTV07C-110VR |
FTV07-110VR |
0.7× |
110mm |
φ20.5 |
400nm〜1200nm |
| FTV10C-110VR |
FTV10-110VR |
1.0× |
φ24 |
| FTV20C-110VR |
FTV20-110VR |
2.0x |
| FTV40C-110VR |
FTV40-110VR |
4.0x |
φ20.5 |
Example of SWIR Transparent Images
Possible to image the internal circuitry of IC by transmitting light through silicon at wavelength 1100 nm
Visible（White)
SWIR（1100nm）
