- NEW
- FIXED FOCAL LENS

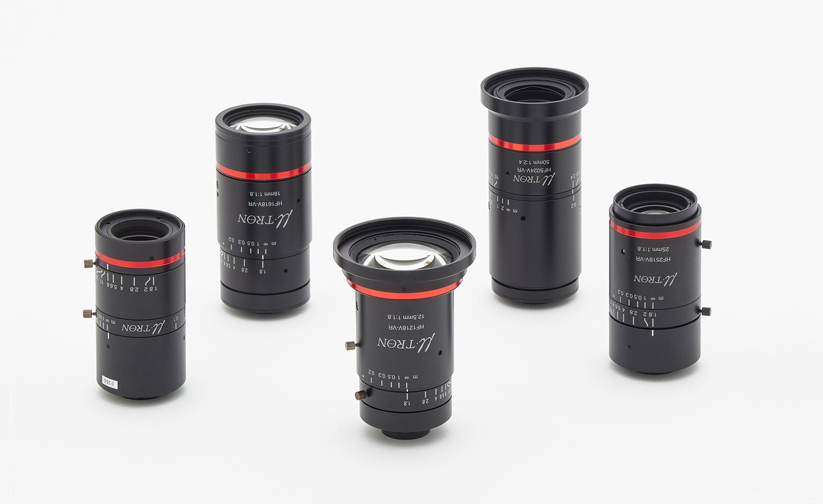

- HF-VR Series
Visible ~ SWIR Fixed Focal Lens with Focus Shift Correction
- Focus shift correction in wide wavelength band from Visible to SWIR
- Clear images in visible light and transmitted images in SWIR can be captured without focus adjustment
- Possible to capture differences and defects that cannot be seen in visible ray
| Model |
Focal Length |
Magnification at MOD |
Range of WD |
Maximum Compatible Sensor |
Wavelength |
| HF1218V-VR |
12.5mm |
0.11× |
100mm〜∞ |
1.2″
|
400nm〜1700nm |
| HF1618V-VR |
16mm |
0.14× |
| HF2518V-VR |
25mm |
0.24× |
| HF3518V-VR |
35mm |
0.39× |
| HF5024V-VR |
50mm |
0.27× |
200mm〜∞ |
Example of SWIR Transparent Images
Possible to image of the internal circuit board of USB memory
Visible（White）
SWIR（1100nm）
