ILLUMINATION
LIGHTING
〔 UV280 Series 〕
DEEP UV LED Lighting
NEW
LIGHTING

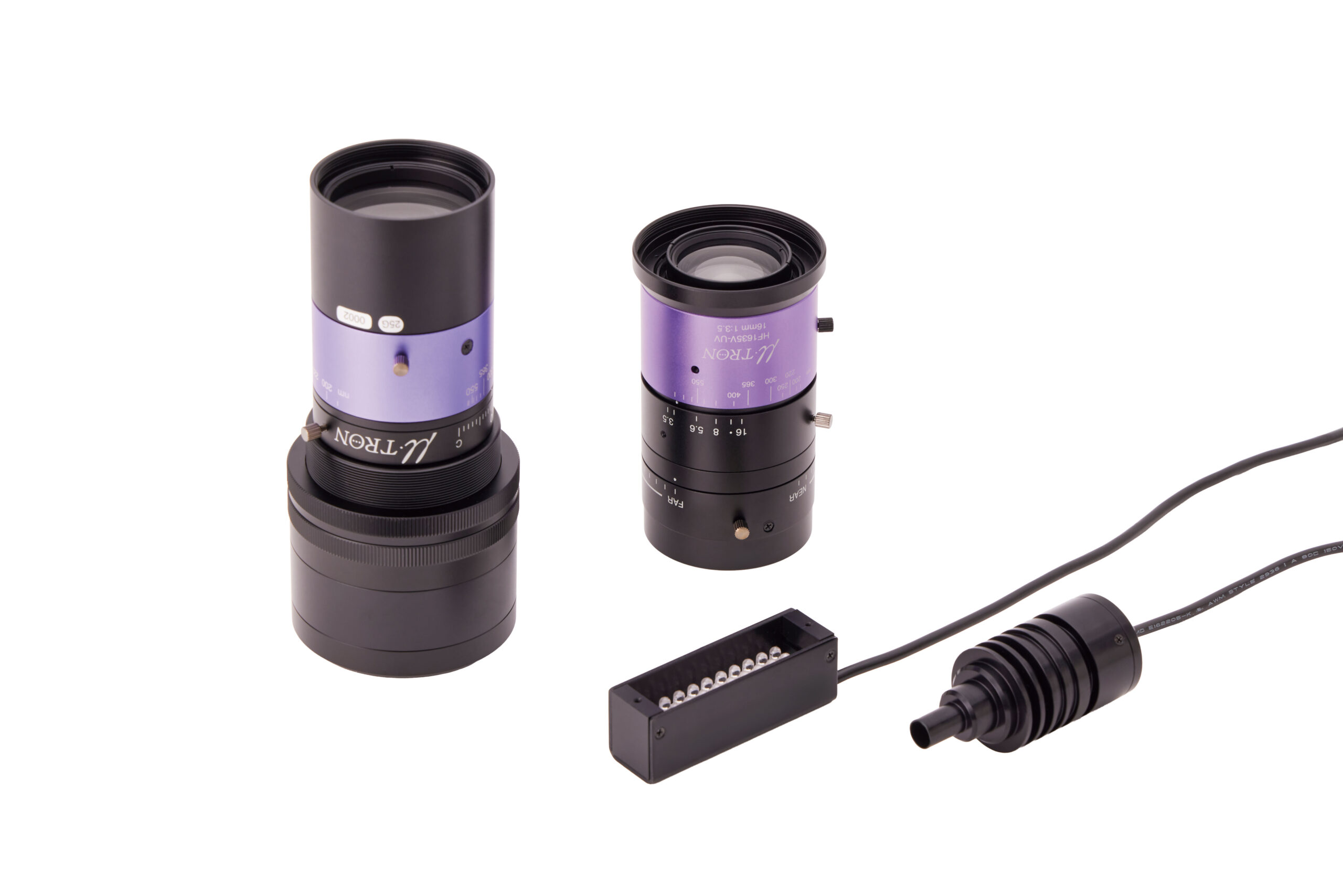

UV280 Series
DEEP UV LED Lighting
Lineup for 280nm, spot light, and bar light
DEEP UV (280nm) LED lighting – Clearly detects minute scratches, defects, and irregularities invisible to visible
Enables even higher-resolution inspection than conventional UV (365nm) LED
Suitable for UV Fixed Focal Length Lens: HF-UV Series / UV Macro Lens: LS-UV Series
Model
Light Color
Input Voltage（W）
Input
Dimensions
MSL21UV280
UV280nm
–
350mA
MUB43UV280
4.5
DC24V
Compatible Controller
MSL21UV280
MUB43UV280
MUB43UV280
Wavelength Characteristics (Reference)
