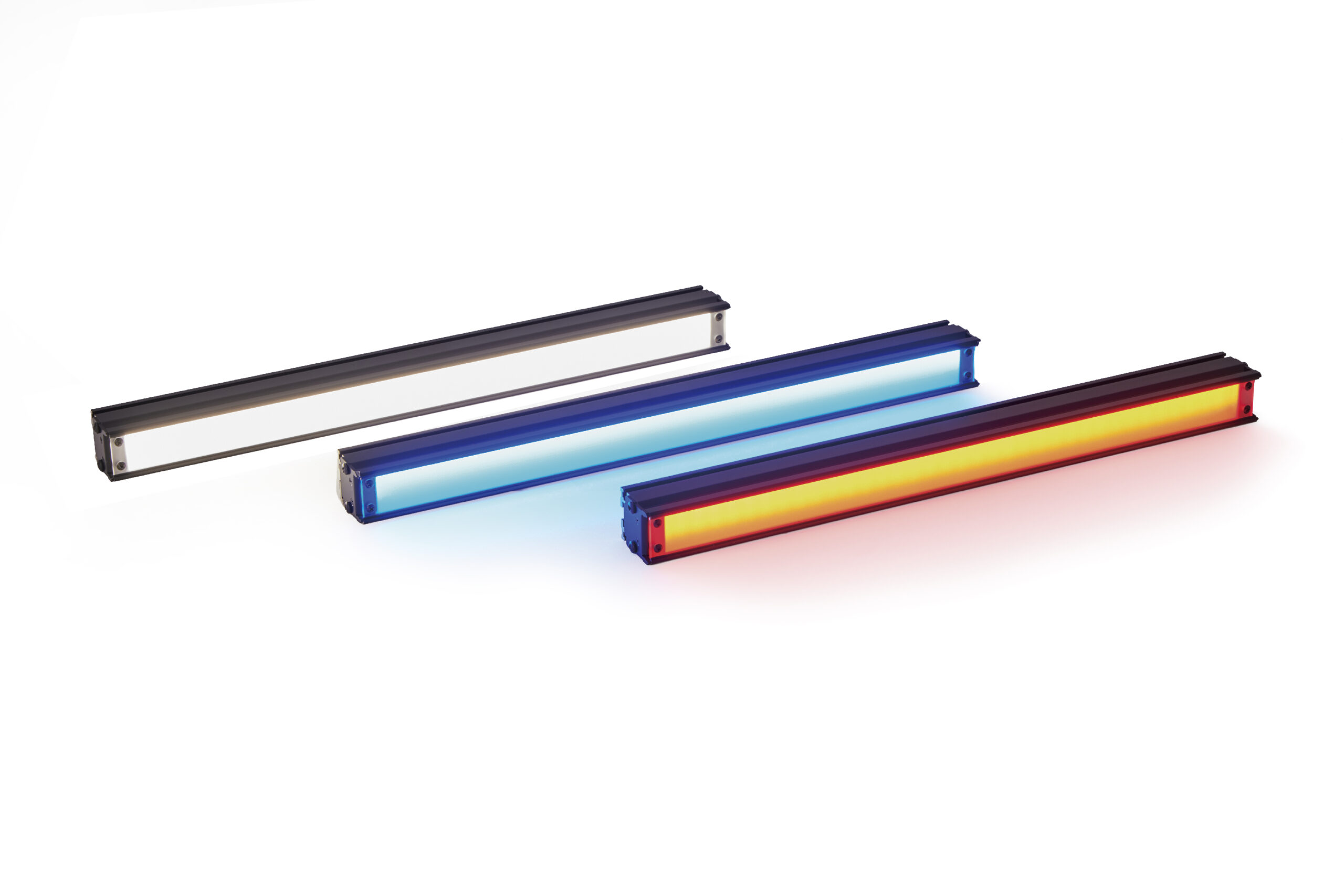

MUB Series

High-Brightness, High-Uniformity Bar Light

10 models with emitting lengths from 50mm to 600mm

Compact and lightweight housing: 30mm x 25mm
Emitting length: 10 models available, ranging from 50mm to 600mm
Two models are available for each size: high brightness and high uniformity (-S)
Infrared types: IR1 (850nm) and IR2 (950nm) are also available

Model	Light Color			Power consumption (W)	Input Voltage	Dimensions
MUB50□■	R			3.5	DC12V		n=1
	W	B		4
	IR1	IR2		2.4
MUB100□■	R			7			n=2
	W	B		8
	IR1	IR2		4.8
MUB150□■	R			10.5			n=3
	W	B		12
	IR1	IR2		7.2
MUB200□■	R			14			n=4
	W	B		16
	IR1	IR2		9.6
MUB250□■	R			17.5			n=5
	W	B		20
	IR1	IR2		12
MUB300□■	R			21			n=6
	W	B		24
	IR1	IR2		14.4
MUB350□■	R			24.5			n=7
	W	B		28
	IR1	IR2		16.8
MUB400□■	IR1	IR2		19.2			n=8
MUB500□■	IR1	IR2		24			n=10
MUB600□■	IR1	IR2		28.8			n=12

○□ = R = Red, W = White, B = Blue, IR1 = 850nm, and IR2 = 950nm
○High-uniformity models are filled with -S

Model	Light Color			Power consumption (W)	Input Voltage	Dimensions
MUB50□H■	R			3.5	DC12V		n=1
MUB50□H■	W	B		4			n=1
MUB100□H■	R			7			n=2
	W	B		8
	IR1	IR2		4.8
MUB150□H■	R			10.5			n=3
MUB150□H■	W	B		12			n=3
MUB200□H■	R			14			n=4
	W	B		16
	IR1	IR2		9.6
MUB250□H■	R			17.5			n=5
MUB250□H■	W	B		20			n=5
MUB300□H■	R			21			n=6
	W	B		24
	IR1	IR2		14.4
MUB350□H■	R			24.5			n=7
MUB350□H■	W	B		28			n=7
MUB400□H■	R			28			n=8
	W	B		32
	IR1	IR2		19.2
MUB500□H■	R			35			n=10
	W	B		40
	IR1	IR2		24
MUB600□H■	R			42			n=12
	W	B		48
	IR1	IR2		28.8

○□ = R = Red, W = White, B = Blue, IR1 = 850nm, and IR2 = 950nm
○ High-uniformity models are filled with -S
