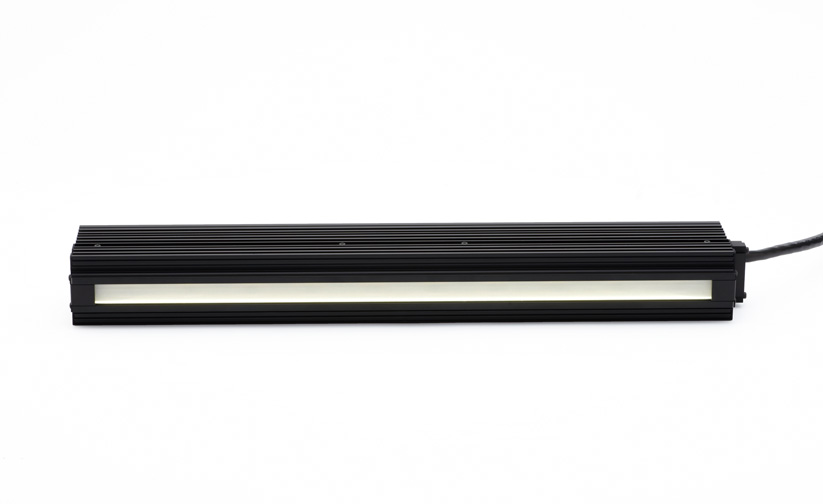

  • MDBB-LSRA Series

600,000 lx very bright lighting product line

FEATURES



SPECIFICATION

Model Color Power Consumption (W) Dimensions

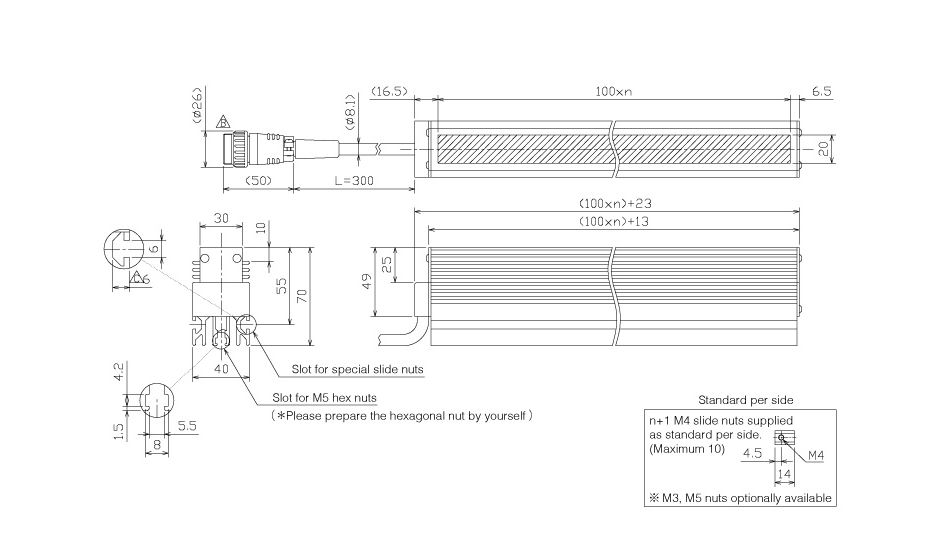

MDBB-LSR100□ W 20 n=1 MDBB-LSRA
B
MDBB-LSR200R□ W 40 n=2
B
MDBB-LSR300R□ W 60 n=3
B
MDBB-LSR400R□ W 80 n=4
B
MDBB-LSR600R□ W 120 n=6
B
MDBB-LSR1000R□ W 200 n=10
B

● W = White, B = Blue, in □.
● Input voltage is DC24V.
● Condenser lens MLBB-□ and diffusion plate MKBB-LSR□ (optional) can be attached. Replace the □ with its size, in 100mm units. Product line from 100 to 1800 mm. Please tell us whether you want a condenser lens or diffusion plate attached. Diffusion plates are 30%, 60%, 80% or 90%.

OPTION

10bit
LAN

Powel Supply applicationHigh function Voltage Light Control Power SupplyVoltage light control power supply capable of 1,000 – level light control

  • As it is capable of varying output voltage, this series is suitable for Line Scan Camera and High Speed Camera.
  • This series is capable of supporting large 24 V DC lights with power consumption of 300 W and makes it possible to select an optimal light control range by setting a low-voltage output limit.
  • It is possible to switch between LAN and parallel communication for external light control.

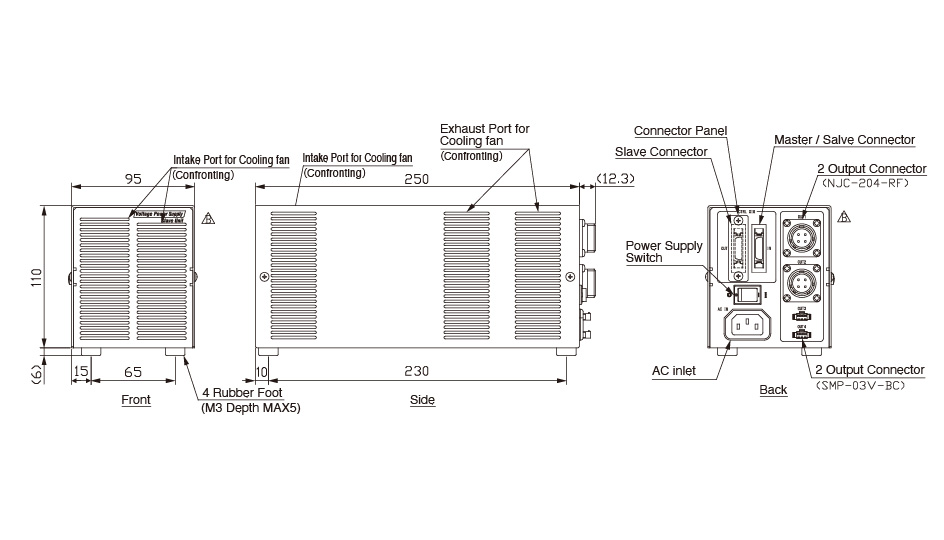

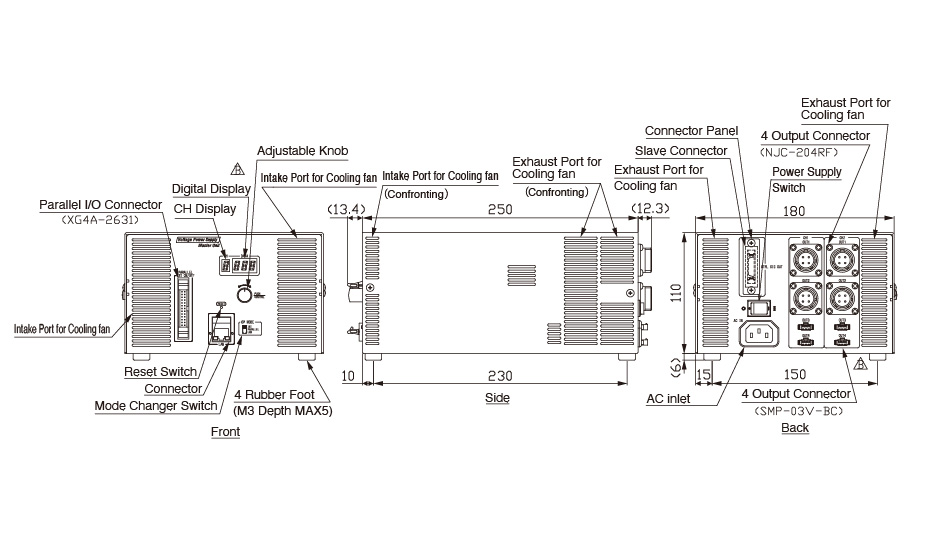

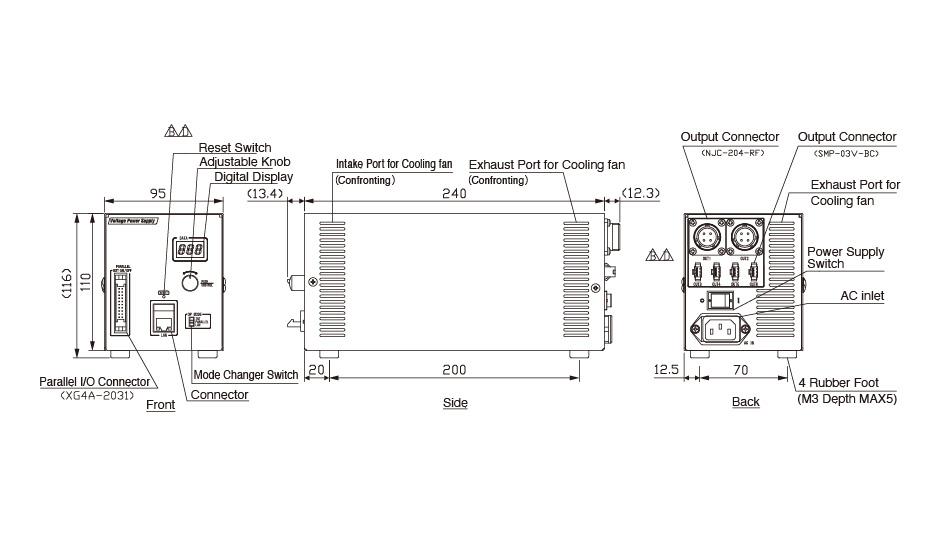

Model MWDV-300S-24 MWDV- 600M2-24 MWDV-300M1-24
Input Voltage AC100〜240V
Operating frequency 50 / 60Hz
Rated output DC24V
Capacity 300W Total 600W(300W/CH) 300W
Channels Single split – channel output connectors
(metal connectors ×2 +SM connectors ×4)
2CH 4 connectors ×2 +SM connectors ×4) 1CH 4 connectors / CH
(metal connectors ×2 +SM connectors ×2)

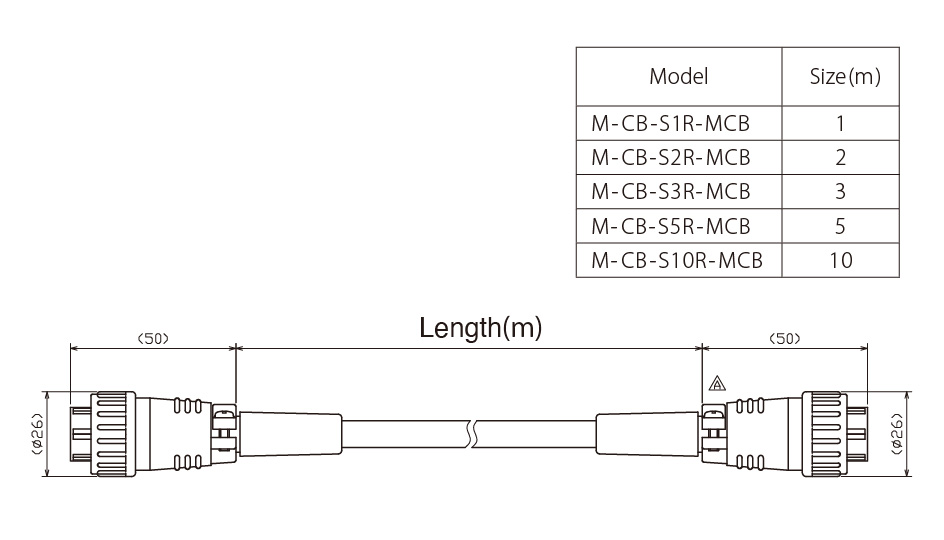

Dedicated extension cable
Dimming method Method to vary output current
External control External ON/OFF External light control ( 10 bit parallel communication / LAN communication )
External control External ON/OFF External light control
(10 bit parallel communication / LAN communication)
External ON/OFF External light control
( 10 bit parallel communication / LAN communication )
Dimension
